In this post, we’ll contrast the traditional approach with {pipeflow}, showcasing how it empowers users to build robust workflows while reducing complexity. Let’s dive in!
The Problem: Standard R Workflow
Consider an analysis of R’s airquality data set,
head(airquality) Ozone Solar.R Wind Temp Month Day
1 41 190 7.4 67 5 1
2 36 118 8.0 72 5 2
3 12 149 12.6 74 5 3
4 18 313 11.5 62 5 4
5 NA NA 14.3 56 5 5
6 28 NA 14.9 66 5 6where we want to:
- Add a new column, Temp.Celsius, converting temperatures from Fahrenheit to Celsius.
- Fit a linear model predicting Ozone based on temperature.
- Visualize the data alongside the model fit.
Here’s how the workflow might look using standard R:
library(ggplot2)
# Step 1: Prepare the data
airquality$Temp.Celsius <- (airquality$Temp - 32) * 5 / 9
# Step 2: Fit a linear model
model <- lm(Ozone ~ Temp.Celsius, data = airquality)

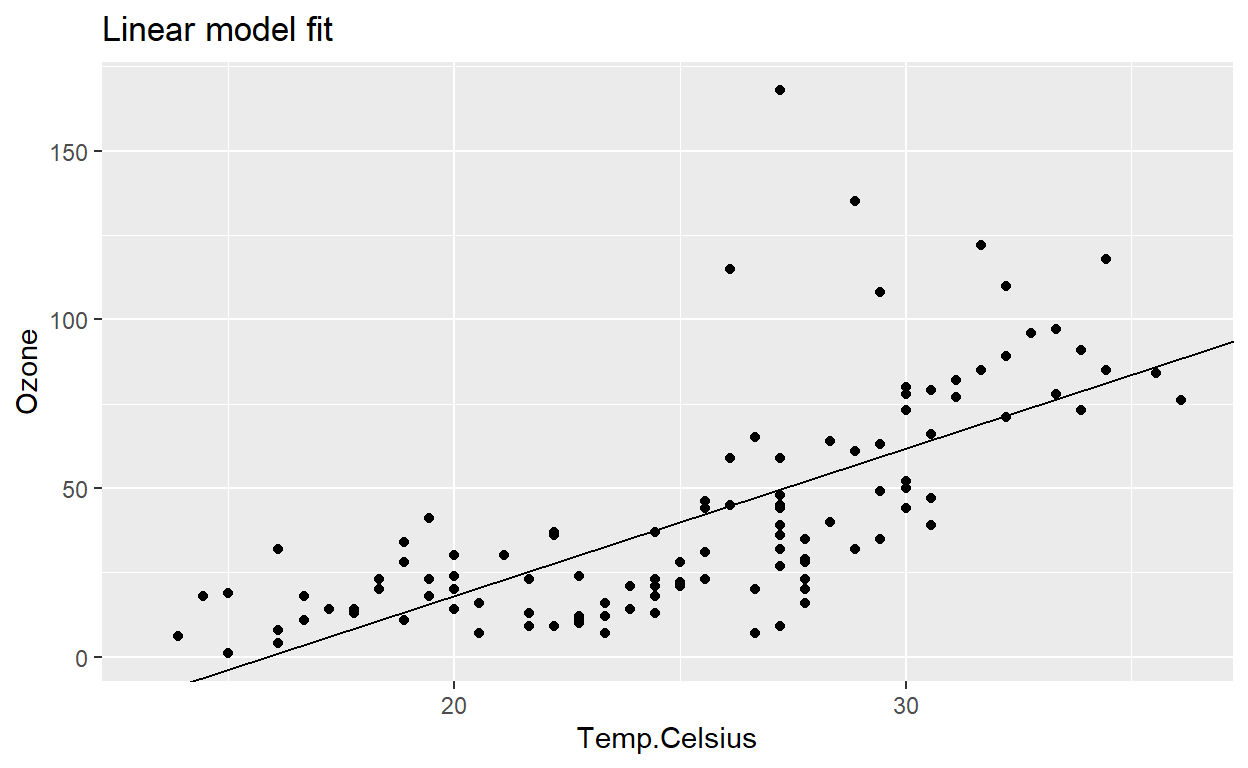

# Step 3: Generate the plot
coeffs <- coefficients(model)
ggplot(airquality) +
geom_point(aes(Temp.Celsius, Ozone)) +
geom_abline(intercept = coeffs[1], slope = coeffs[2]) +
labs(title = "Linear model fit")
While functional, this approach has clear drawbacks:
- Manual Dependency Management: Each step depends on outputs from the previous steps, which must be tracked manually.
- Limited Reusability: Modifying or extending the workflow requires substantial effort and risks introducing errors.
- Cluttered Code: With all operations in a single script, the overall structure of the workflow becomes unclear.
The {pipeflow} Solution: Modular and Manageable
{pipeflow} addresses these challenges by organizing workflows into modular, dependency-aware steps. Let’s rewrite the same workflow using {pipeflow}.
Step 1: Initialize the Pipeline
First, we create a pipeline named “my-pipeline” and load the airquality dataset as input:
Step 2: Add a Data Preparation Step
Next, we add a step to calculate Temp.Celsius:
pip$add(
"data_prep",
function(data = ~data) {
replace(data, "Temp.Celsius", (data[, "Temp"] - 32) * 5 / 9)
}
)Step 3: Fit a Linear Model
We add another step to fit a linear model using the transformed data:
pip$add(
"model_fit",
function(data = ~data_prep, xVar = "Temp.Celsius") {
lm(paste("Ozone ~", xVar), data = data)
}
)Step 4: Visualize the Model Fit
Finally, we create a visualization step that uses the outputs from model_fit
and data_prep:
pip$add(
"model_plot",
function(
model = ~model_fit,
data = ~data_prep,
xVar = "Temp.Celsius",
title = "Linear model fit"
) {
coeffs <- coefficients(model)
ggplot(data) +
geom_point(aes(.data[[xVar]], .data[["Ozone"]])) +
geom_abline(intercept = coeffs[1], slope = coeffs[2]) +
labs(title = title)
}
)Now, we can run the pipeline and inspect the model plot:
pip$run()INFO [2024-12-23 11:36:10.291] Start run of 'my-pipeline' pipeline:
INFO [2024-12-23 11:36:10.321] Step 1/4 data
INFO [2024-12-23 11:36:10.332] Step 2/4 data_prep
INFO [2024-12-23 11:36:10.357] Step 3/4 model_fit
INFO [2024-12-23 11:36:10.361] Step 4/4 model_plot
INFO [2024-12-23 11:36:10.368] Finished execution of steps.
INFO [2024-12-23 11:36:10.368] Done.pip$get_out("model_plot")
Why {pipeflow}?
Here are the key advantages of using {pipeflow} over the standard approach:
- Automatic Dependency Management: Dependencies between steps are handled automatically using the ~ operator to reference previous steps -> No manual tracking of intermediate variables.
- Modularity: Each step is independent, making pipelines easier to debug and modify.
- Flexibility: Parameters can be dynamically updated without affecting the rest of the pipeline and steps that depend on modified inputs are automatically rerun.
- Visualization: {pipeflow} supports graphical representations of pipelines for a clear view of the workflow structure.
Visualizing the Pipeline
With {pipeflow}, you can easily visualize your pipeline using the visNetwork
package to produce a diagram showing the flow from data to data_prep,
model_fit, and model_plot, making the workflow immediately understandable.
library(visNetwork)
do.call(visNetwork, args = pip$get_graph()) |>
visHierarchicalLayout(direction = "LR")Ensuring Integrity
{pipeflow} also verifies pipeline integrity at definition time. For example, trying to reference a non-existent step triggers an error:
pip$add(
"invalid_step",
function(data = ~non_existent) {
data
}
)Error: step 'invalid_step': dependency 'non_existent' not foundThis proactive error-checking ensures that pipelines remain robust and free from misconfigurations.
Dynamic Updates
One of {pipeflow}’s standout features is its ability to dynamically update parameters and rerun only the affected steps. For example:
# Change the predictor variable
pip$set_params(list(xVar = "Solar.R"))
pip$run()INFO [2024-12-23 11:36:10.782] Start run of 'my-pipeline' pipeline:
INFO [2024-12-23 11:36:10.783] Step 1/4 data - skip 'done' step
INFO [2024-12-23 11:36:10.784] Step 2/4 data_prep - skip 'done' step
INFO [2024-12-23 11:36:10.785] Step 3/4 model_fit
INFO [2024-12-23 11:36:10.789] Step 4/4 model_plot
INFO [2024-12-23 11:36:10.798] Finished execution of steps.
INFO [2024-12-23 11:36:10.799] Done.Only the steps depending on xVar (i.e., model_fit and model_plot)
are rerun.
# Update input data using only the first 10 rows
pip$set_data(airquality[1:10, ])
pip$run()INFO [2024-12-23 11:36:10.828] Start run of 'my-pipeline' pipeline:
INFO [2024-12-23 11:36:10.829] Step 1/4 data
INFO [2024-12-23 11:36:10.831] Step 2/4 data_prep
INFO [2024-12-23 11:36:10.837] Step 3/4 model_fit
INFO [2024-12-23 11:36:10.840] Step 4/4 model_plot
INFO [2024-12-23 11:36:10.846] Finished execution of steps.
INFO [2024-12-23 11:36:10.847] Done.The entire pipeline is rerun, as all steps depend on the input data.
# Update the plot title
pip$set_params(list(title = "Updated Plot Title"))
pip$run()INFO [2024-12-23 11:36:10.878] Start run of 'my-pipeline' pipeline:
INFO [2024-12-23 11:36:10.879] Step 1/4 data - skip 'done' step
INFO [2024-12-23 11:36:10.881] Step 2/4 data_prep - skip 'done' step
INFO [2024-12-23 11:36:10.882] Step 3/4 model_fit - skip 'done' step
INFO [2024-12-23 11:36:10.884] Step 4/4 model_plot
INFO [2024-12-23 11:36:10.889] Finished execution of steps.

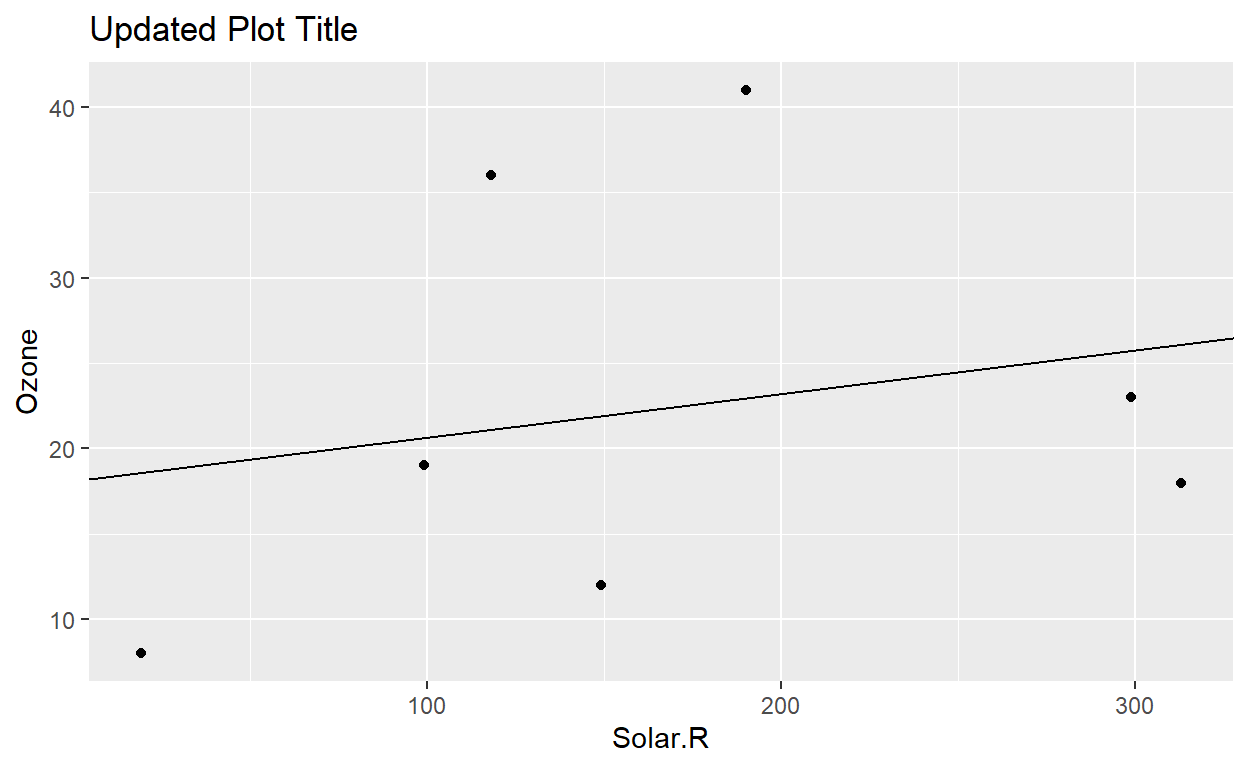

INFO [2024-12-23 11:36:10.890] Done.Only the model_plot step is rerun. Let’s inspect the final result with
the updated x-axis variable and plot title:
pip$get_out("model_plot")
{pipeflow} vs. targets
The R ecosystem includes powerful tools like targets, designed for advanced, reproducible workflows. However, targets may involve additional setup and a steeper learning curve while {pipeflow} emphasizes simplicity:
- Quick Setup: Define and run a pipeline in just a few steps.
- Intuitive Design: Seamlessly manage dependencies without extra configuration.
- Dynamic Updates: Modify parameters and inputs on the fly.
While targets excels in highly complex workflows, {pipeflow} offers a versatile solution that’s both beginner-friendly but still capable of supporting demanding tasks.
Conclusion
{pipeflow} transforms the way you build and manage data analysis workflows in R. By automating dependency tracking, ensuring pipeline integrity, and enabling dynamic updates, it reduces complexity and enhances productivity. Whether you’re working on a simple analysis or a large-scale project, {pipeflow} helps you focus on insights rather than infrastructure.
Ready to give {pipeflow} a try? Explore the documentation to learn more and start building smarter pipelines today!
